SERIES F

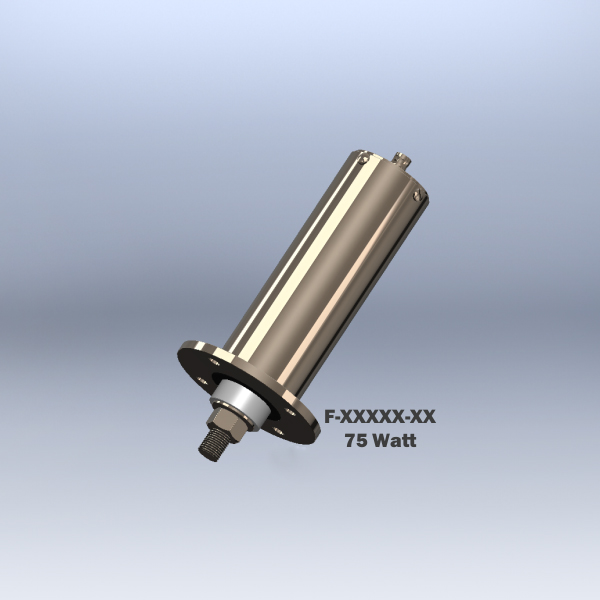

75 Watt Hi-Wattage Units - 7 7/8 Inch Overall Length
|
Model |
Resistance ohms |
Bandpass MHz. |
Risetime nsec. |
Emax joules |
|
F-250-1 |
0.02 |
800 |
0.45 |
250 |
|
F-500-2 |
0.01 |
200 |
2 |
500 |
|
F-1000-4 |
0.005 |
48 |
8 |
1000 |
|
F-2000-8 |
0.0025 |
12 |
30 |
2000 |
|
F-2500-10 |
0.002 |
8 |
45 |
2500 |
|
F-4000-16 |
0.00125 |
3.2 |
113 |
4000 |
|
F-5000-20 |
0.001 |
2.2 |
164 |
5000 |
|
F-8000-32 |
0.000625 |
1 |
250 |
8000 |
|
F-10000-40 |
0.0005 |
0.58 |
872 |
10000 |

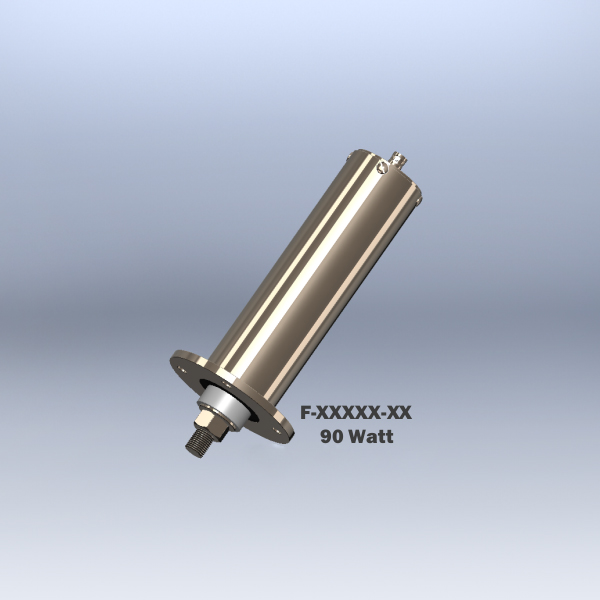

90 Watt Hi-Wattage Units - 8 7/8 Inch Overall Length
|
Model |
Resistance ohms |
Bandpass MHz. |
Risetime nsec. |
Emax joules |
|
F-300-1 |
0.025 |
800 |
0.45 |
300 |
|
F-3000-10 |
0.0025 |
8 |
45 |
3000 |
|
F-16000-40 |
0.0008 |
0.58 |
872 |
16000 |
配置：标配含一根BNC线，德国TESTEC品牌，RG58型号
